CryoHandy: Portable Cryo-Transportation Vessel

Portable Cryo-Transportation Vessel for Biological Samples Transfer

Add to cart

CryoHandy: Portable Cryo-Transportation Vessel for Secure Biological Sample Transfer

Maintain <-150°C for 4 Hours – Ideal for Clean Rooms, Hospitals, and Labs

Ensure the integrity of your biological samples during transport with the CryoHandy, a compact and reliable dry shipper designed for cryogenic transportation. Utilizing liquid nitrogen, CryoHandy maintains a stable <-150°C environment for up to four hours, making it perfect for transferring sensitive samples between clean rooms, hospitals, clinics, and laboratories.

Key Features:

Extended Cryogenic Preservation: Maintains an internal temperature of <-150°C for up to four hours, guaranteeing sample stability.

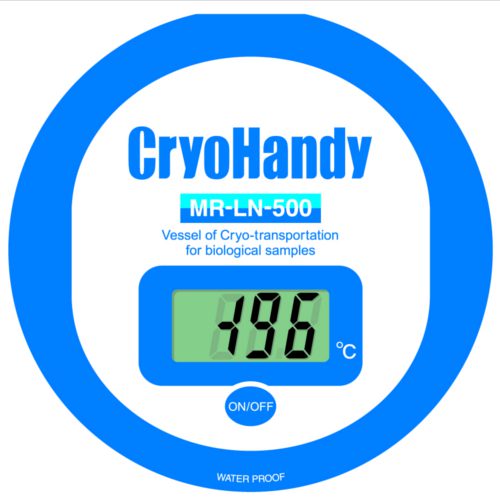

Real-Time Temperature Monitoring: The integrated temperature display on the lid (2,500hr battery life) provides constant monitoring during transport.
Compact & Portable Design: Easily carried and transported, ideal for moving samples between facilities.
Clean Room & Clinical Compatibility: Waterproof design allows for alcohol disinfection, ensuring a sterile environment.
Safe Nitrogen Gas Release: Lid channels safely release evaporated nitrogen gas, preventing pressure buildup.
Easy-Open Screw Thread: Ensures effortless lid opening, even when frozen.
Hygienic Lid Design: Avoids deep channels that can harbour bacteria, maintaining sample purity.

Benefits:

Secure Sample Transport: Provides a consistent cryogenic environment, protecting valuable biological samples.
Convenient & Reliable: Eliminates the need for bulky liquid nitrogen dewars, simplifying sample transfer.
Enhanced Safety: Integrated temperature display and safe nitrogen gas release ensure user safety.
Versatile Applications: Suitable for a wide range of biological samples, including cells, tissues, and biological fluids.

Applications:

Clean Room Transfers
Hospital & Clinic Sample Transport
Laboratory Sample Movement
Biological Research Shipments

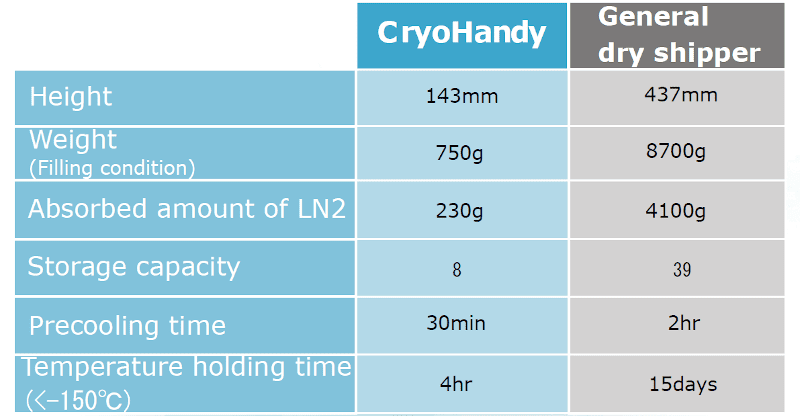

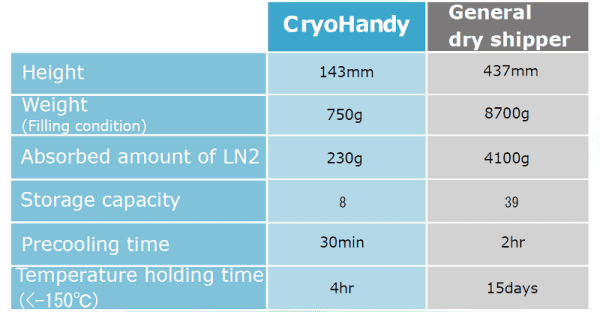

CryoHandy is smaller than the other conventional dry shippers. Therefore, it is easy to prepare and handle.

Note: The battery and absorbent within the CryoHandy are not replaceable. Please purchase a new unit when the battery is depleted or the absorbent deteriorates.

Short-term transport your biological samples with confidence. Order your CryoHandy today.

Dimension	without lid [143 × 87 (mm)], with lid [180 × 98 (mm)]
Weight	Dry condition [520g], Filled condition [750g], Amount of LN2 Absorbed [230g]

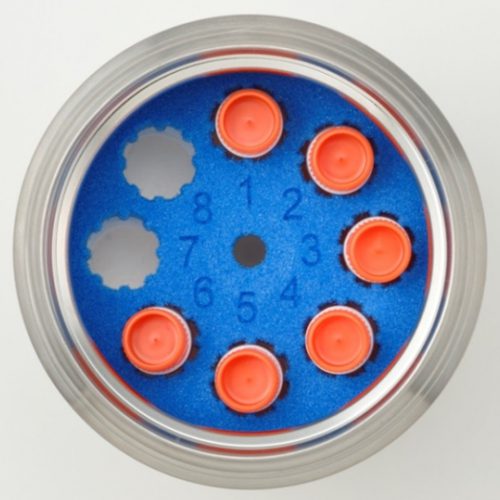

Sample Storage Capacity (1～2mL Tube)	8 tubes(Max 12mm Dia x 50mm high)
Preparation Time	30 min
Materials	Container Stainless Steel, Polycarbonate Lid, Stainless Steel Temperature Sensor, Polyurethane Foam Tube Retainer, Resin Embedded Material LN2 Absorbent
Temperature Sensor	Type K Thermocouple
Auto Power-off	3min

Data

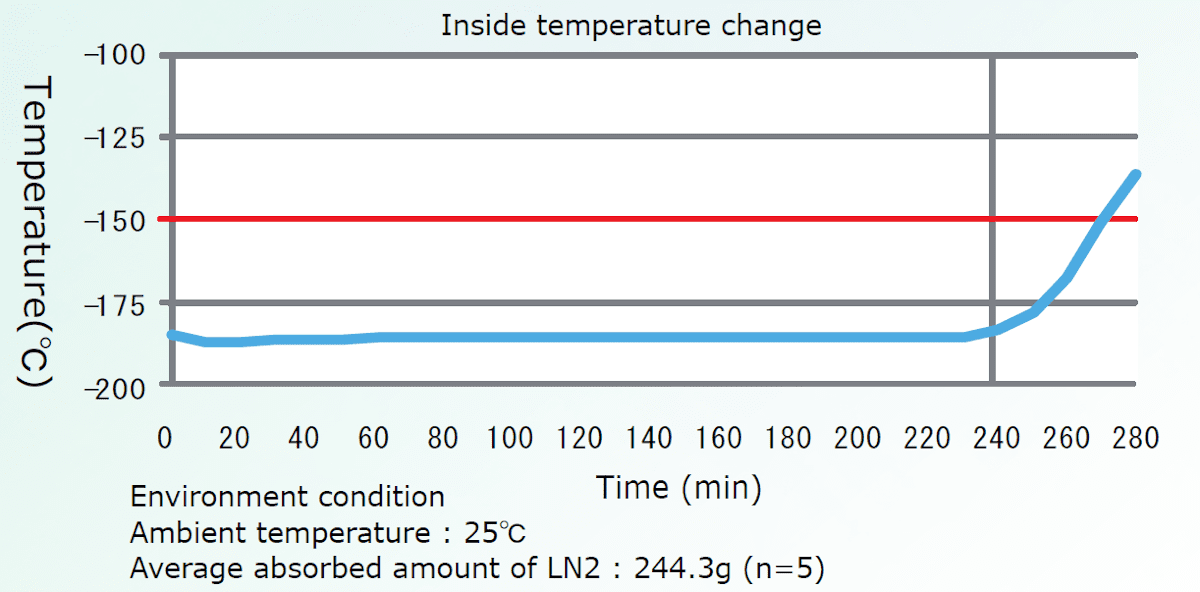

We measured the inside temperature of CryoHandy after filling LN₂. The result is shown below. CryoHandy was able to keep the temperature <-150℃ for up to 4 hours.

* Please note that we do not guarantee that CryoHandy always holds <-150℃ for 4 hours because the holding time depends on many factors like ambient temperature, the volume of absorbed LN2 and so on.
