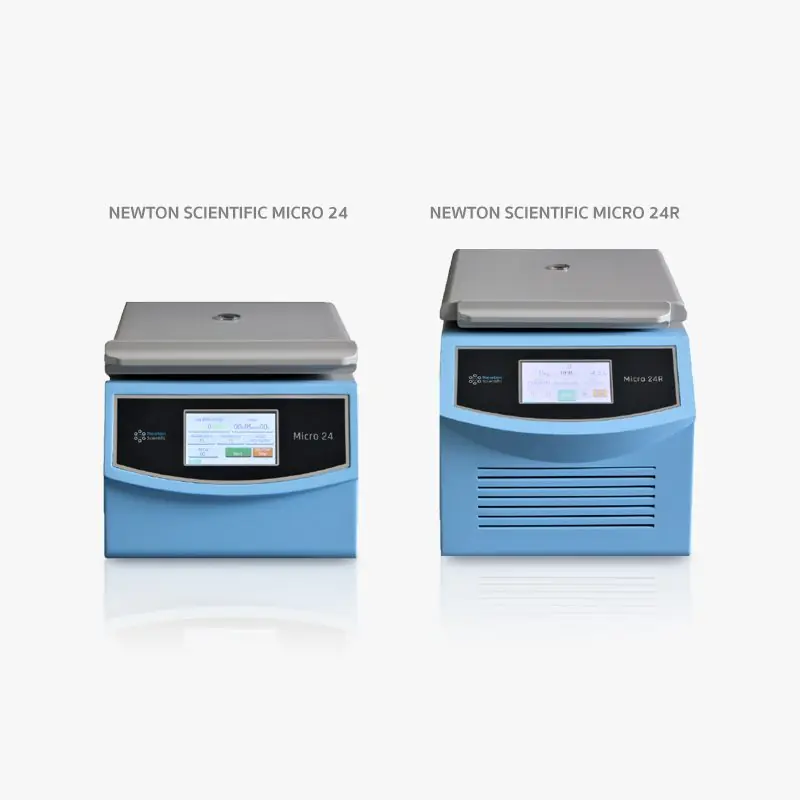

Newton Scientific Micro 24 & Micro 24R microcentrifuges

Newton Scientific Micro 24 & Micro 24R microcentrifuges

Newton Scientific Micro 24 & Micro 24R microcentrifuges

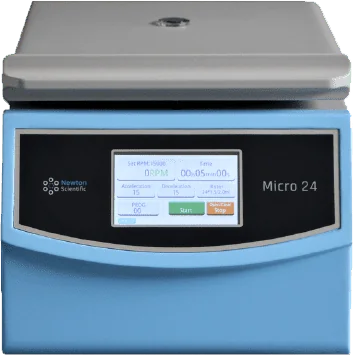

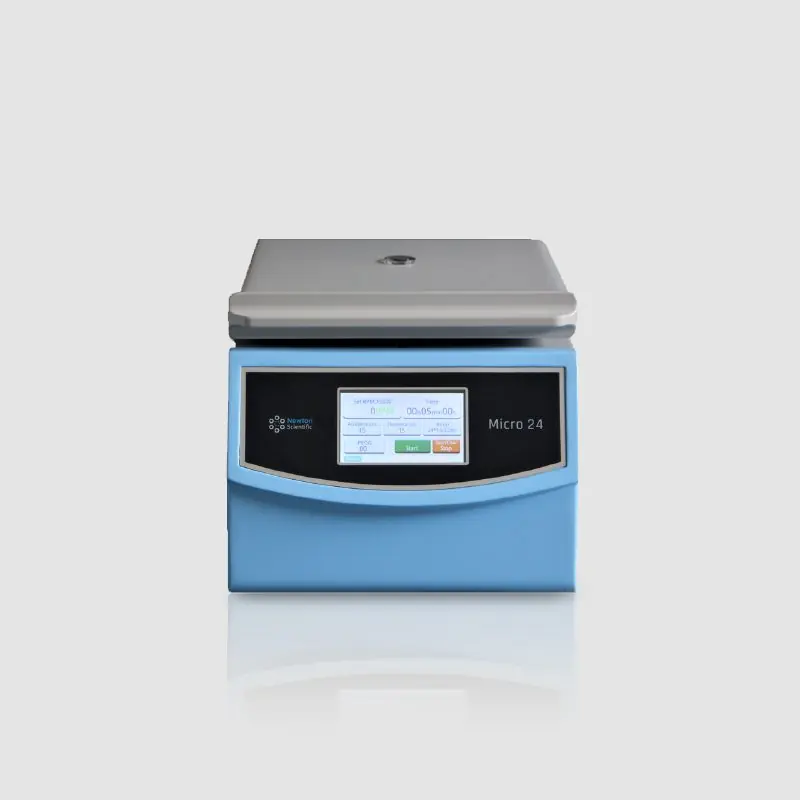

Newton Scientific Micro 24 microcentrifuges

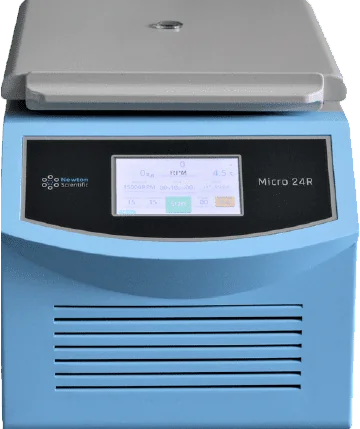

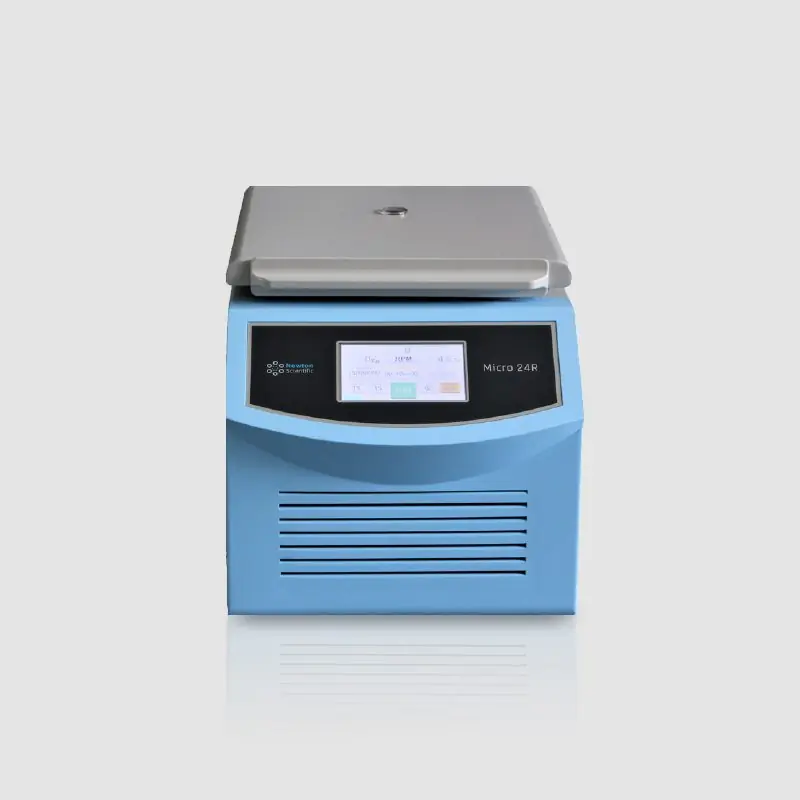

Newton Scientific Micro 24R microcentrifuges

Newton Scientific Micro 24 & Micro 24R microcentrifuges is ideal for everyday laboratory use up to 20,625 x g. It provides outstanding processing power, unique safety features and a broad array of microcentrifuge rotors and accessories for microcentrifuge tube processing. Unit comes complete with a 24×1.5/2.0ml rotor.

  • Powerful units deliver exceptional safety, performance and capacity
  • Simplify operation with intuitive controls, easy-to-read touch screen display.
  • Modern, slick and space-saving design.
  • Durable and easy to clean and maintain.
  • Quiet performance promotes a safe, stress-free environment.

Add to cart

Versatile, high-throughput sample processing from 24 x 2 ml microtubes to 12 x 5ml centrifuge tubes per run. Save time and ensure sample integrity with fast acceleration and deceleration rates, combined with smooth runs at all speeds.

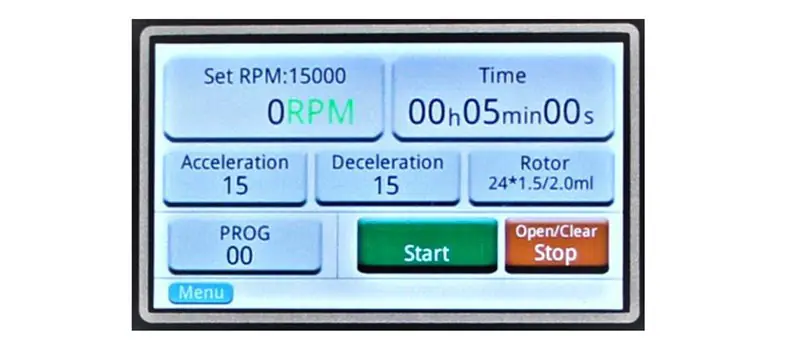

Large multi-color Touchscreen display provide clear indication of running condition including rotor, speed, RCF, time etc.

The touchscreen gives you ease of control and a modern feel. An advanced microprocessor controls allow for setting/displaying of the rotational speed in either RPM or RCF. It is splash-proof and protects the inner electronics from external elements.

There are 15 rates available for customised acceleration and deceleration profile for each of your program (zero brake option available). Ensuring your samples get the best separation. Frequency variable motor drive system enable the unit to operate in a stable and quiet manner. Pre-cool function allows set temperature to be reached rapidly.

Our bench top high speed microcentrifuges simplify high-throughput sample processing with up to 20,625 x g, maximized capacity up to 12 x 5ml, and an extensive rotor portfolio. Supporting labware from PCR tubes, strip tubes, 2ml microtubes, to 5ml tubes. Overcome challenges of a shared laboratory setting with the productivity, safety, and reliability of a Newton Scientific Centrifuge.

Newton Scientific centrifuge enable the users to edit and store up to 40 programs with combination of speed, centrifugal force, running time, acceleration/deceleration rate which is sufficient for all users in a lab.

Enhanced safety provided by electronic door lock and protection against imbalance, over speed and over heat. These three layers of protection ensure safety of the machine and user.

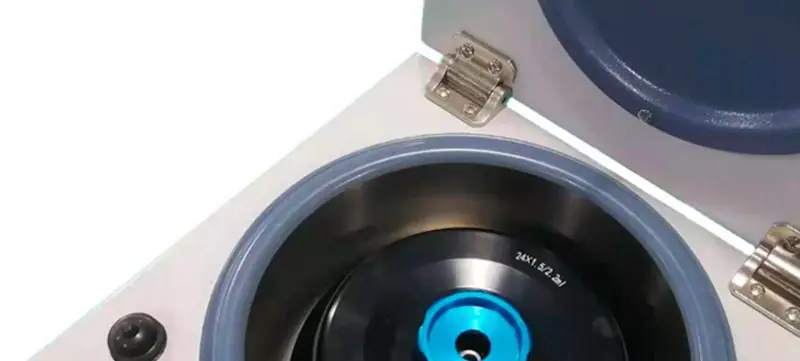

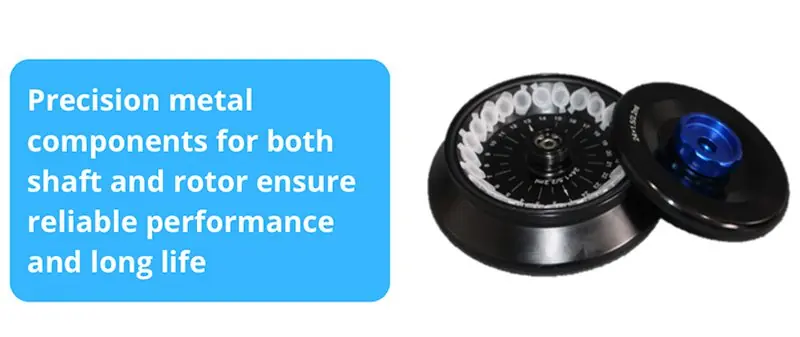

(All main unit ordered will include a 24×1.5/2.0ml rotor as standard)

Newton Scientific Micro 24 Newton Scientific Micro 24R
Cat. No. 86005001 86005002
Max RPM (rpm) 16,500 rpm 16,500 rpm
RPM accuracy ±20 rpm ±20 rpm
Max RCF 20,625 × g 20,625 × g
Max Capacity 12×5 ml 12×5 ml
Set Time 1s to 99h 59min 59s 1s to 99h 59min 59s
Temp Range NA -20°C to 40°C
Temp Accuracy NA ±1.0°C
Power Supply AC 200-240V, 50Hz AC 200-240V, 50Hz
Sound Level ≤ 62dBa ≤ 58dBa
Dimension WxDxH 270x335x245 mm 295x470x330 mm
Weight 15 kg 36 kg


Cat.No. Type Capacity Max Speed (RPM) RCF (x g)
86005010 Angle Rotor
12×1.5/2.0 ml
16,500 15,720
86005011 Angle Rotor
24×1.5/2.0 ml
15,000 20,625
86005012 Rotor
8 x PCR Strips
14,000 14,395

Product Sheet
