Microfluidic Pressure Sensor

Add to cart

Flow-through pressure sensors adapted to gases or liquids, and compatible with the Luer-lock standard. The flowplus fluid sensor is intended to measure the pressure of fluid media flowing through the sensor.

LIQUID AND GAS PRESSURE MONITORING

⇒Measure pressure anywhere in your setup

PRESSURE MONITORING & CONTROL

⇒Pair it with our Sensor Reader or Pressure Controller

LARGE PRESSURE RANGE

⇒A single sensor from 0 to 16 bar

ACCURATE

⇒Accuracy up to 2 % FS

√ HIGH CHEMICAL COMPATIBILITY

√ UP TO 16 BAR

Unique Performances

• Accuracy down to 0.2 % FS

• 5 ranges from 70 mbar to 7,000 mbar

• Internal volume: 7 μL

• Settling time: 20 ms

• Works with both liquid & gas

Highlights

Elveflow’s Flow Plus Sensor works as Gauge sensors, measuring positive relatively to atmospheric pressure. The MFP is compact, easy to clean, don’t require maintenance, easy to install or integrate in existing plants. Its features make it a robust and reliable solution for demanding microfluidic applications.

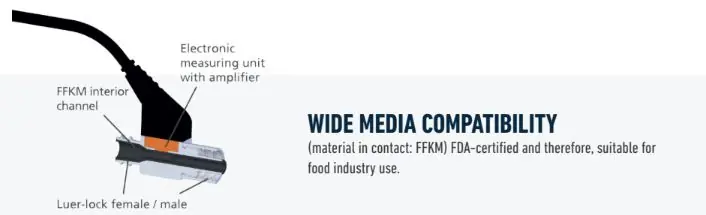

Wide media compatibility (FFKM)
FDA-certified suitable for food industry use
Inline Sensor
No-maintenance and easy to clean

Temperature compensated
Polarization safe

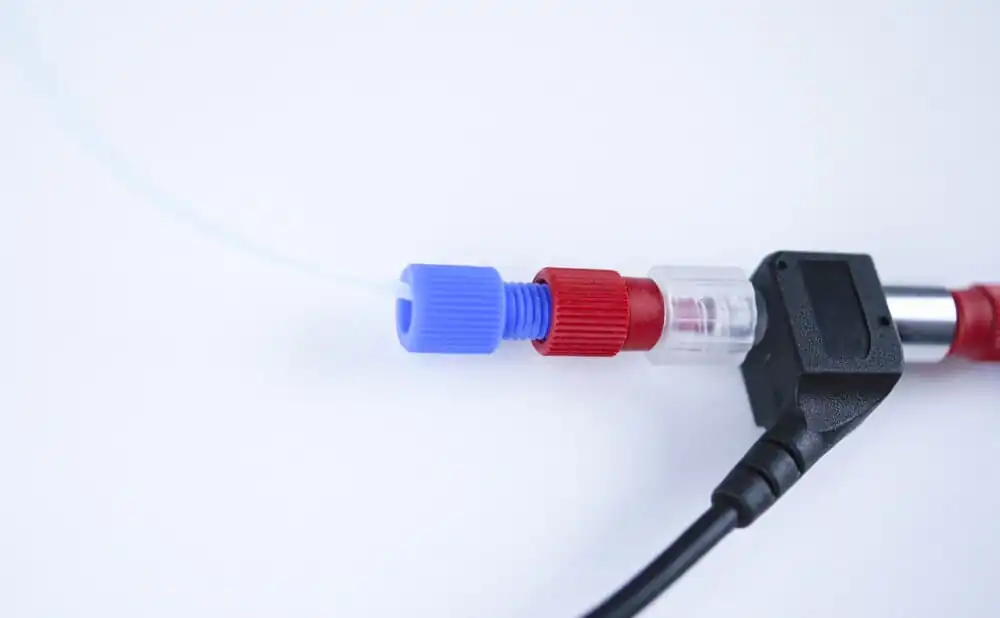

Luer-Lock adapter
Integrated measurement amplification

KEY PERFORMANCES:

Accuracy up to 2 % Full Scale
1 range 0 – 16 bar / overload 25 bar
No dead volume
Flow rate up to 100 ml / min

PRESSURE CONTROL:

You can achieve precise pressure control of your experiment by combining any Pressure Sensor with our pressure controller systems (OB1 MK3+, AF1). The Elveflow ESI software automatically adjusts the pressure to reach the required flow rate.

Researchers who want to monitor the pressure of a third party instrument like a syringe pump can plug the flow sensor to our Microfluidic Sensor Reader (MSR ).

SMOOTH, PULSELESS FLOW:

All our flow controller systems (OB1 MK3+, AF1) can be coupled with the Microfluidic Inline Pressure Sensor. Using the feedback loop control of our ESI software, you can accurately monitor and control pressure anywhere in setup in a stable, pulseless and responsive fashion. Directly input the pressure into the software to reach the requested value.

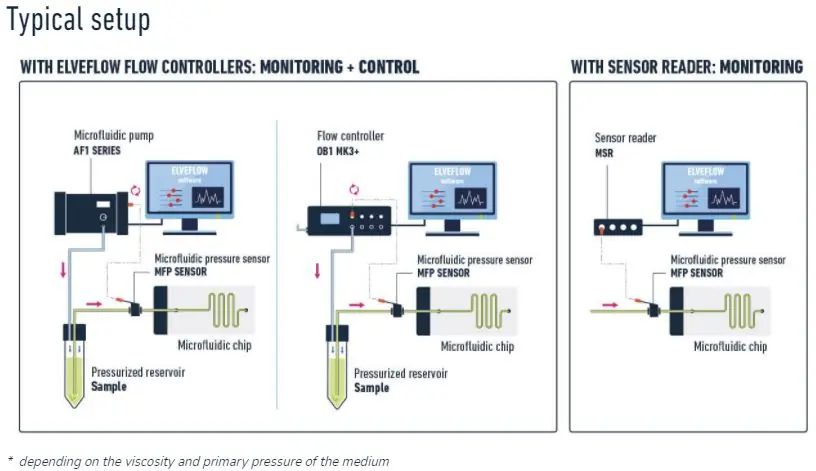

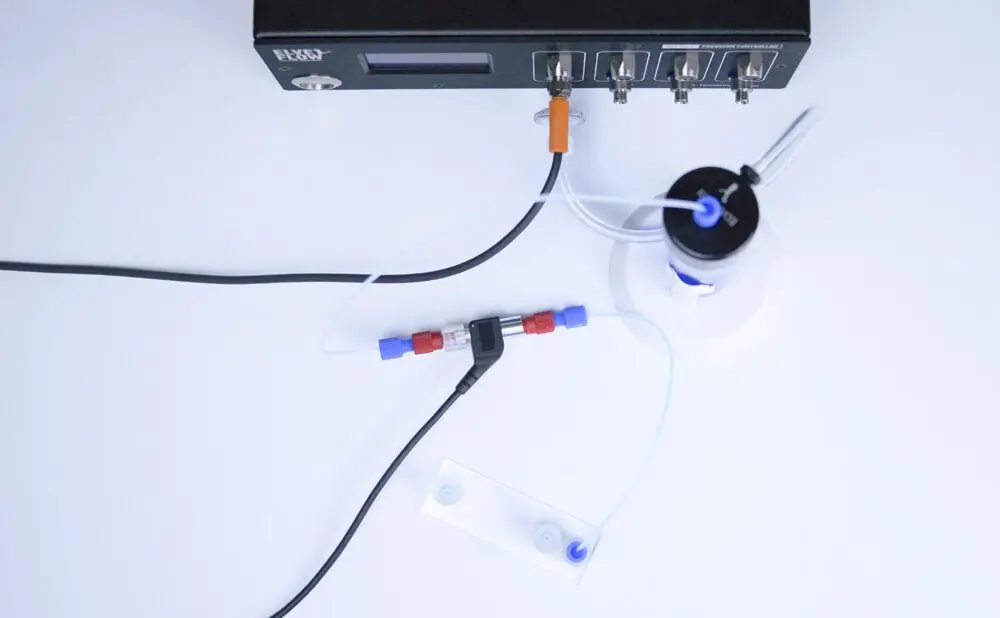

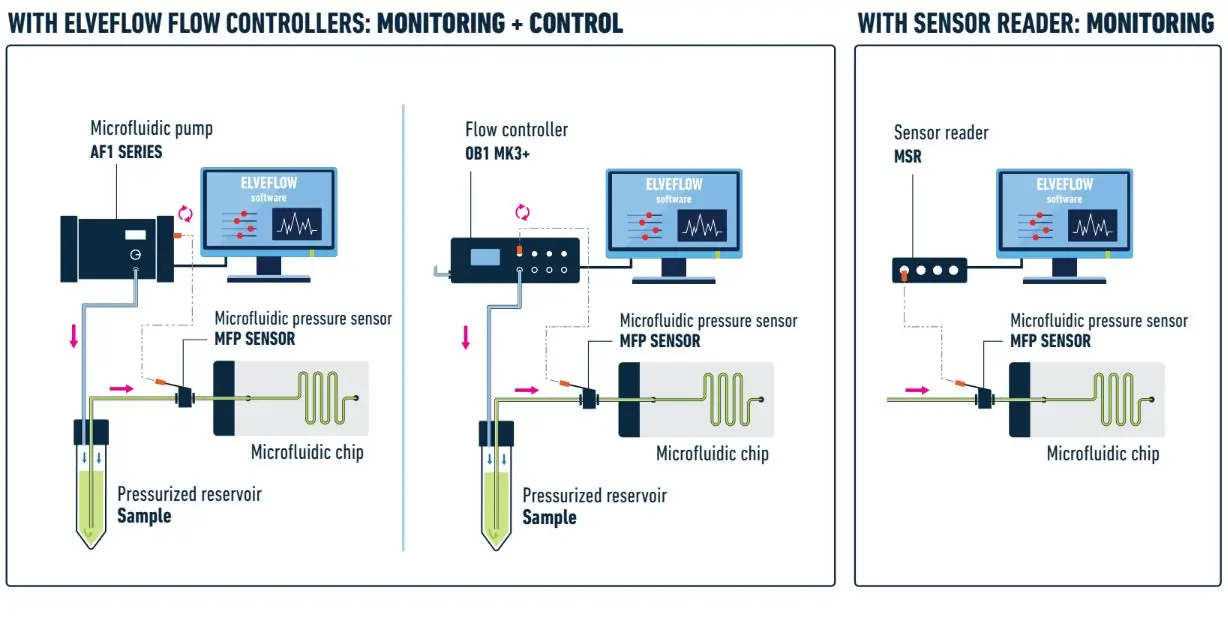

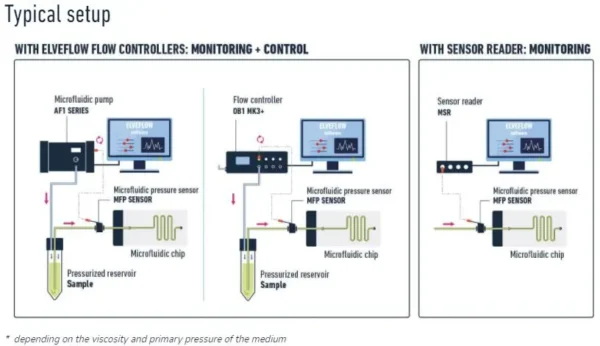

The microfluidic pressure sensor can be plugged anywhere inline in your microfluidic setup

Applications

• You can plug our pressure sensor anywhere within your microfluidic setup, record the pressure on your computer and adjust the pressure or flow accordingly uisng our pressure pumps.

Technical Specifications

The following table summarizes the main features of the three different version AF1 available.
