ExoBrite™ CTB EV Staining Kits

ExoBrite™ CTB EV Staining Kits

ExoBrite™ CTB EV Staining Kits provide bright, low-background staining of purified and bead-bound EVs, delivering excellent signal-to-noise for flow cytometry.

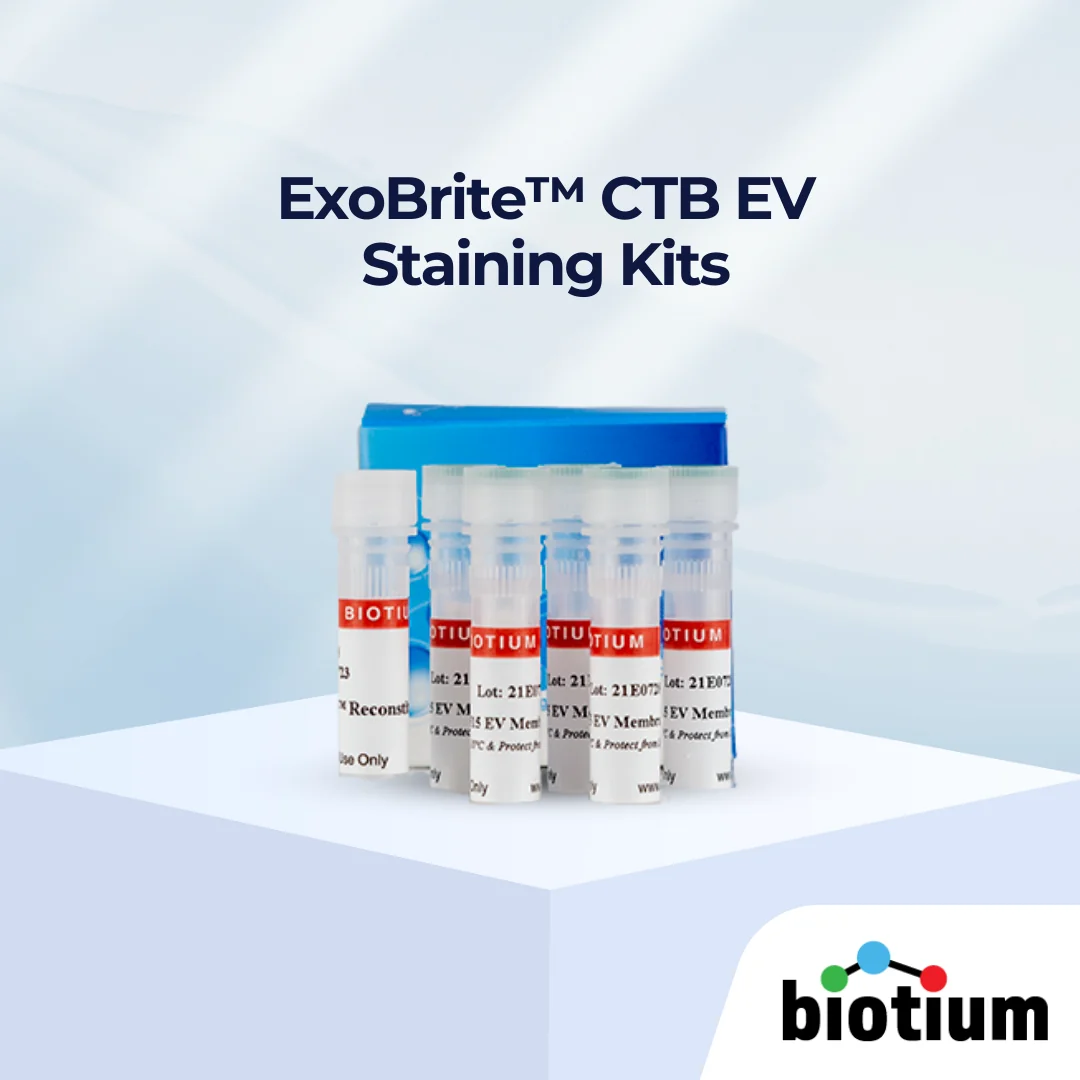

ExoBrite™ CTB EV Staining Kits cover image

Add to cart
SKU: 30111-T, 30111, 30112-T, 30112, 30113-T, 30113, 30114-T, 30114 Categories: Tags: Brand:

Bright EV Stains with Excellent Signal-to-Noise

ExoBrite™ CTB EV Staining Kits are fluorescent conjugates of cholera toxin subunit B (CTB), optimised to provide bright, specific staining of extracellular vesicles (EVs) while overcoming common challenges in EV detection.

Unlike many lipophilic dyes that form aggregates or bind non-specifically to polystyrene beads, ExoBrite™ CTB stains are formulated to deliver high fluorescence intensity with little to no background aggregation. This makes them highly reliable for flow cytometry detection of both purified EVs and bead-bound EVs.

By binding to GM1 gangliosides commonly found on EV membranes, ExoBrite™ CTB stains ensure superior signal-to-noise ratio and more complete coverage compared to traditional stains such as DiO, CellMask™, ExoFlow-ONE™, and ExoGlow™. Fully compatible with antibody co-staining (e.g. CD9, CD63, CD81), these stains enable multi-parameter EV analysis with confidence.

Each kit contains ExoBrite™ CTB EV Stain and Reconstitution Solution, yielding 100 µL of 500X staining solution per vial.

Key Features

  • Optimally formulated CTB conjugates for EV staining
  • Bright fluorescence and low background for excellent signal-to-noise
  • Works with both purified and bead-bound EVs
  • Compatible with flow cytometry and antibody co-staining
  • Available in four detection channel options (Pacific Blue™, FITC, PE/Cy®3, APC)



Less Background, Better Coverage

ExoBrite™ CTB EV Stains deliver exceptional signal-to-noise and more complete coverage of purified and bead-bound EVs compared to other stains. In contrast, lipophilic dyes like DiO and CellMask™ show significant aggregation, while stains such as ExoFlow-ONE™ and ExoGlow™ provide less EV coverage.

ExoBrite™ CTB EV Stains deliver exceptional signal-to-noise and more complete coverage of purified and bead-bound EVs compared to other stains. In contrast, lipophilic dyes like DiO and CellMask™ show significant aggregation, while stains such as ExoFlow-ONE™ and ExoGlow™ provide less EV coverage.

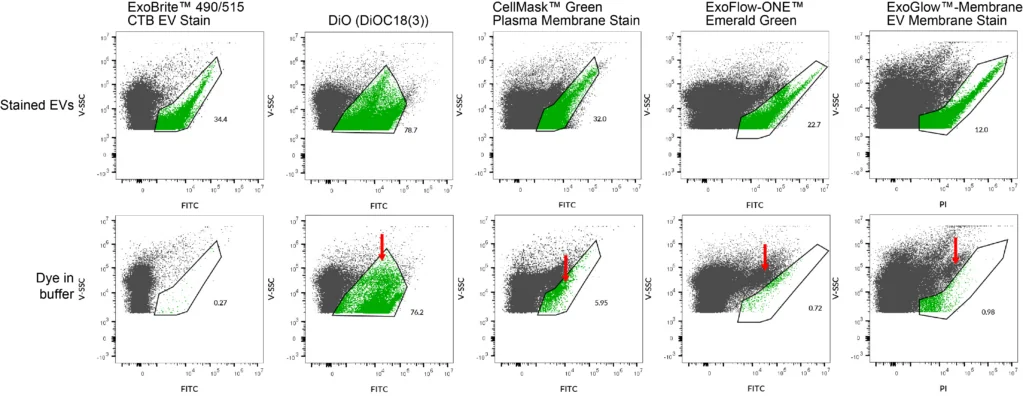

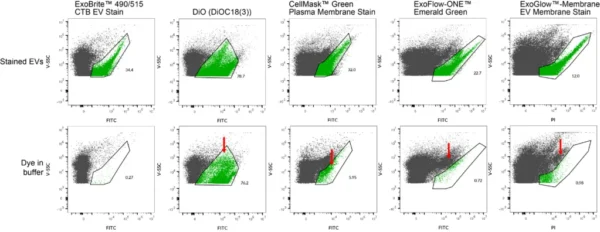

ExoBrite™ CTB EV Stains show lower background and more complete EV staining than competitor dyes. EVs purified from MCF-7 supernatant (SEC) were stained with the indicated dyes (top row). Filtered PBS controls (bottom row) reveal dye aggregation, highlighted with red arrows. Lipophilic dyes like DiO and CellMask™ show high background, while ExoFlow-ONE™ and ExoGlow™ provide less-complete EV coverage compared to ExoBrite™ CTB.





Kit Components

  • ExoBrite™ CTB EV Stain
  • ExoBrite™ Reconstitution Solution
  • Each vial makes 100 µL of 500X staining solution



Notes: Biotium products are available only in Singapore and Thailand.



Enhance your EV research with ExoBrite™ CTB EV Staining Kits – designed for unmatched signal clarity and versatility.

*Please leave us a message during checkout to indicate which kit you need, and our team will process your order accordingly.

Variations

Product Ex/Em (nm) Detection Channels Size Options Catalog Number
ExoBrite™ 410/450 CTB EV Staining Kit 416/452 nm Pacific Blue™ 100 Labelings / 500 Labelings 30111-T / 30111
ExoBrite™ 490/515 CTB EV Staining Kit 490/516 nm FITC 100 Labelings / 500 Labelings 30112-T / 30112
ExoBrite™ 560/585 CTB EV Staining Kit 562/584 nm PE, Cy®3 100 Labelings / 500 Labelings 30113-T / 30113
ExoBrite™ 640/660 CTB EV Staining Kit 642/663 nm APC 100 Labelings / 500 Labelings 30114-T / 30114

Documentation

Proven Performance

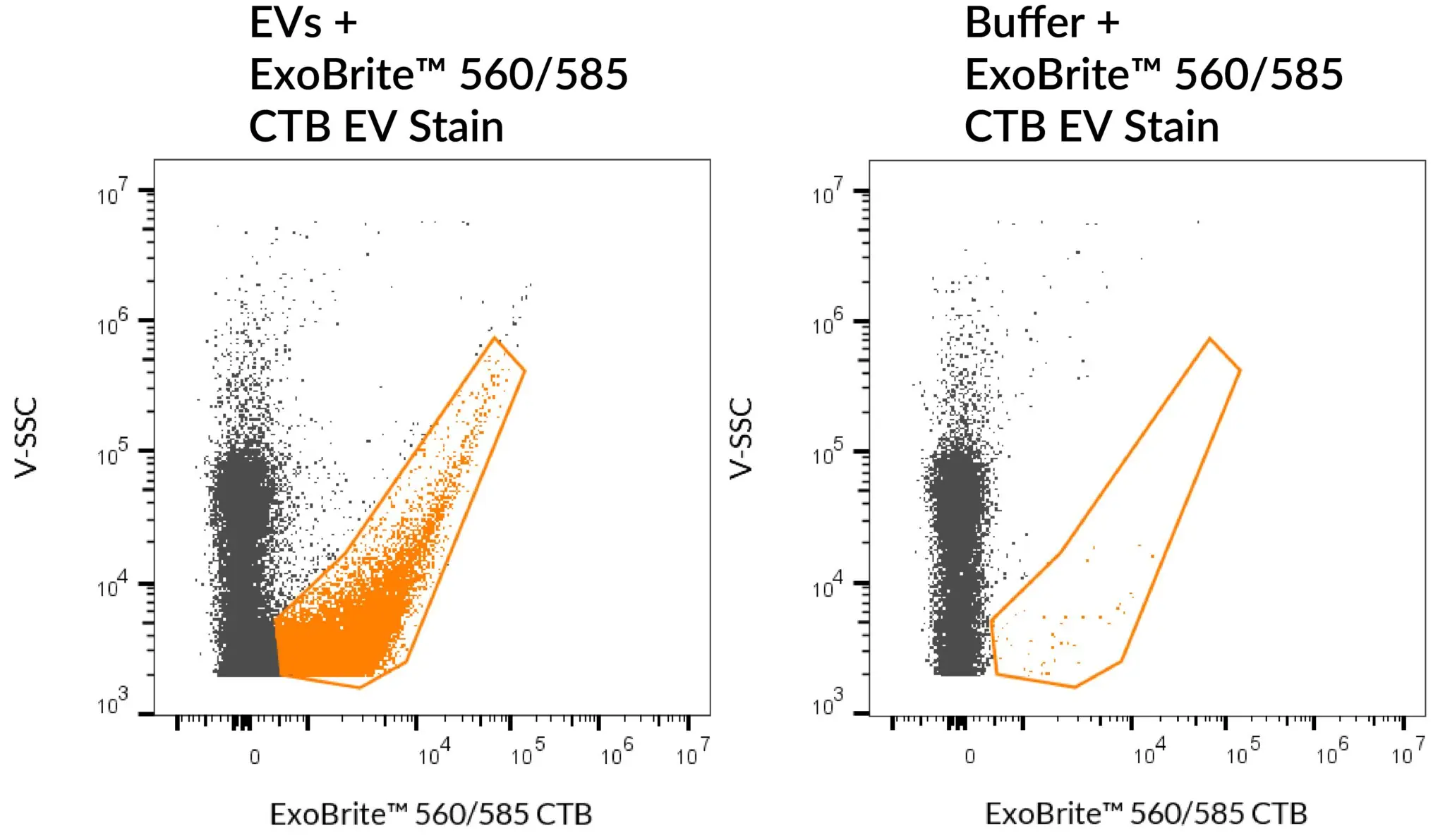

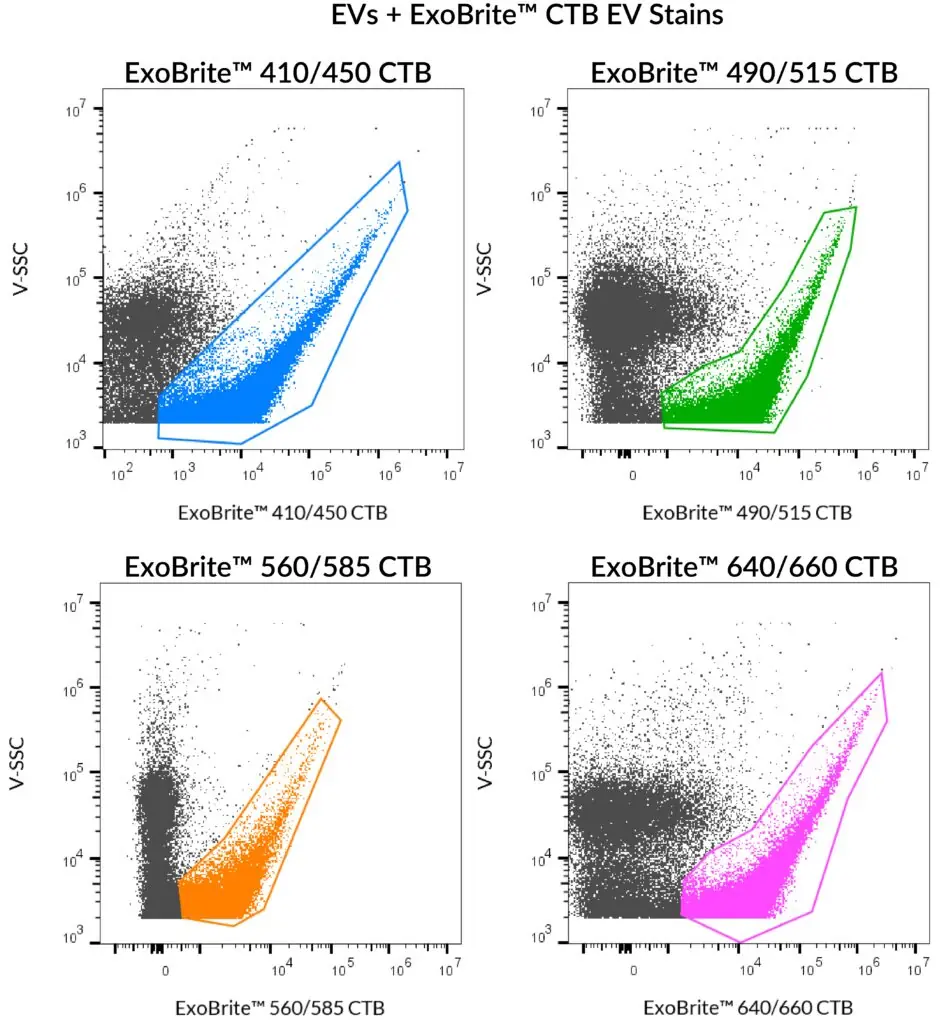

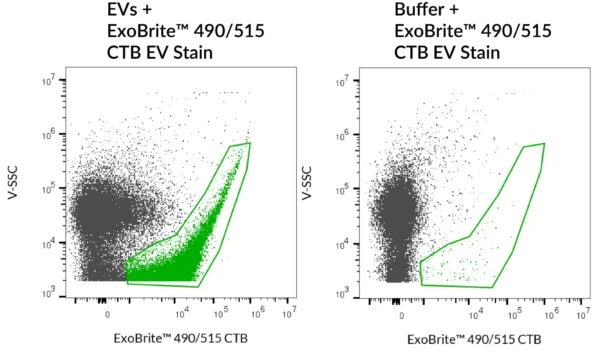

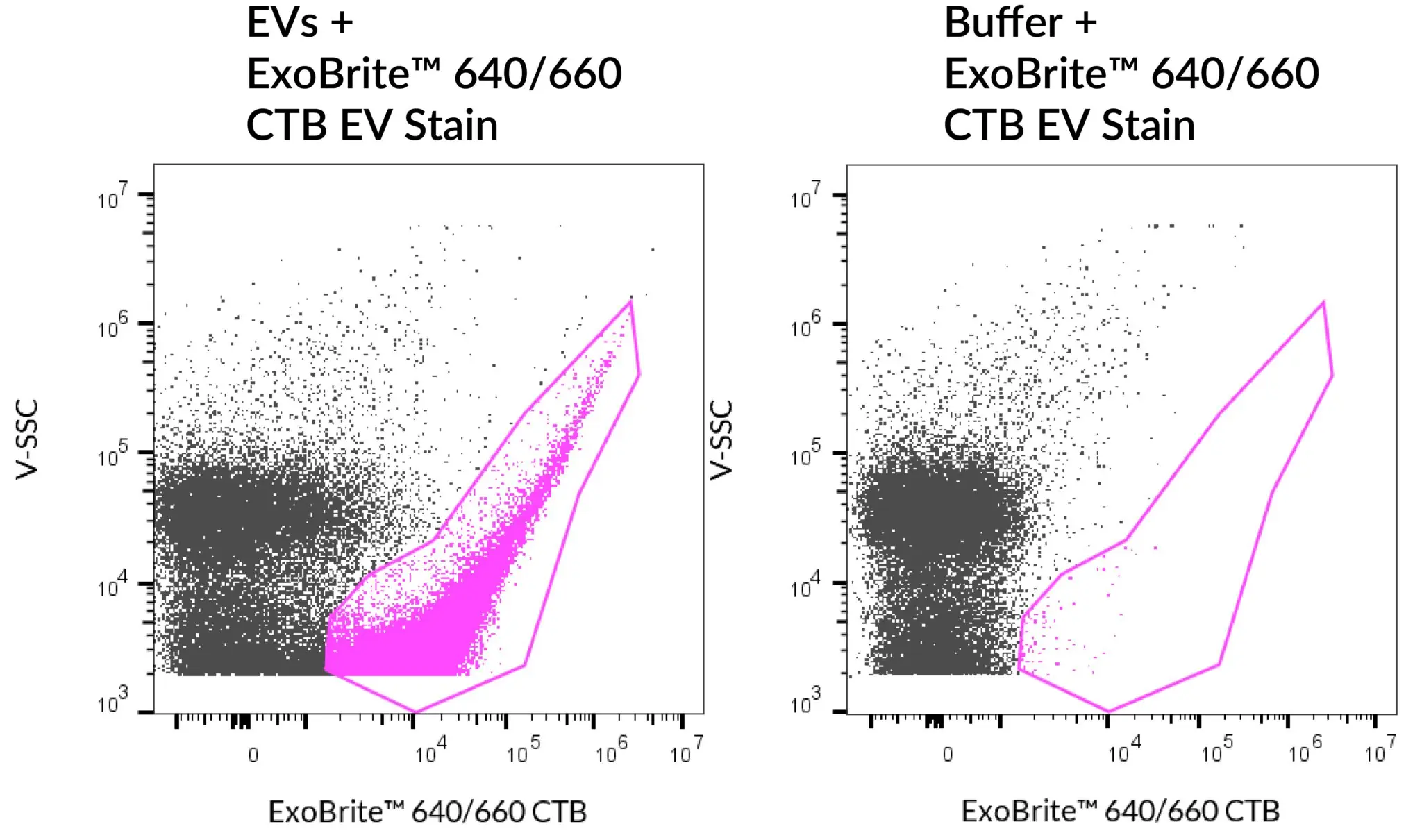

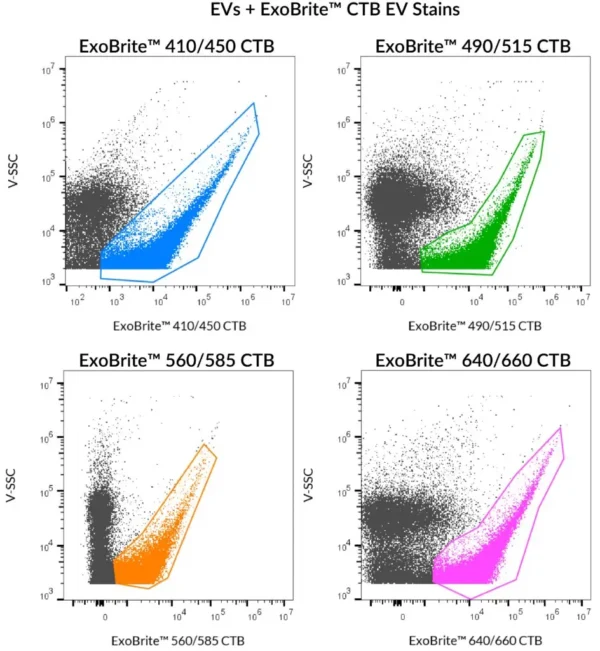

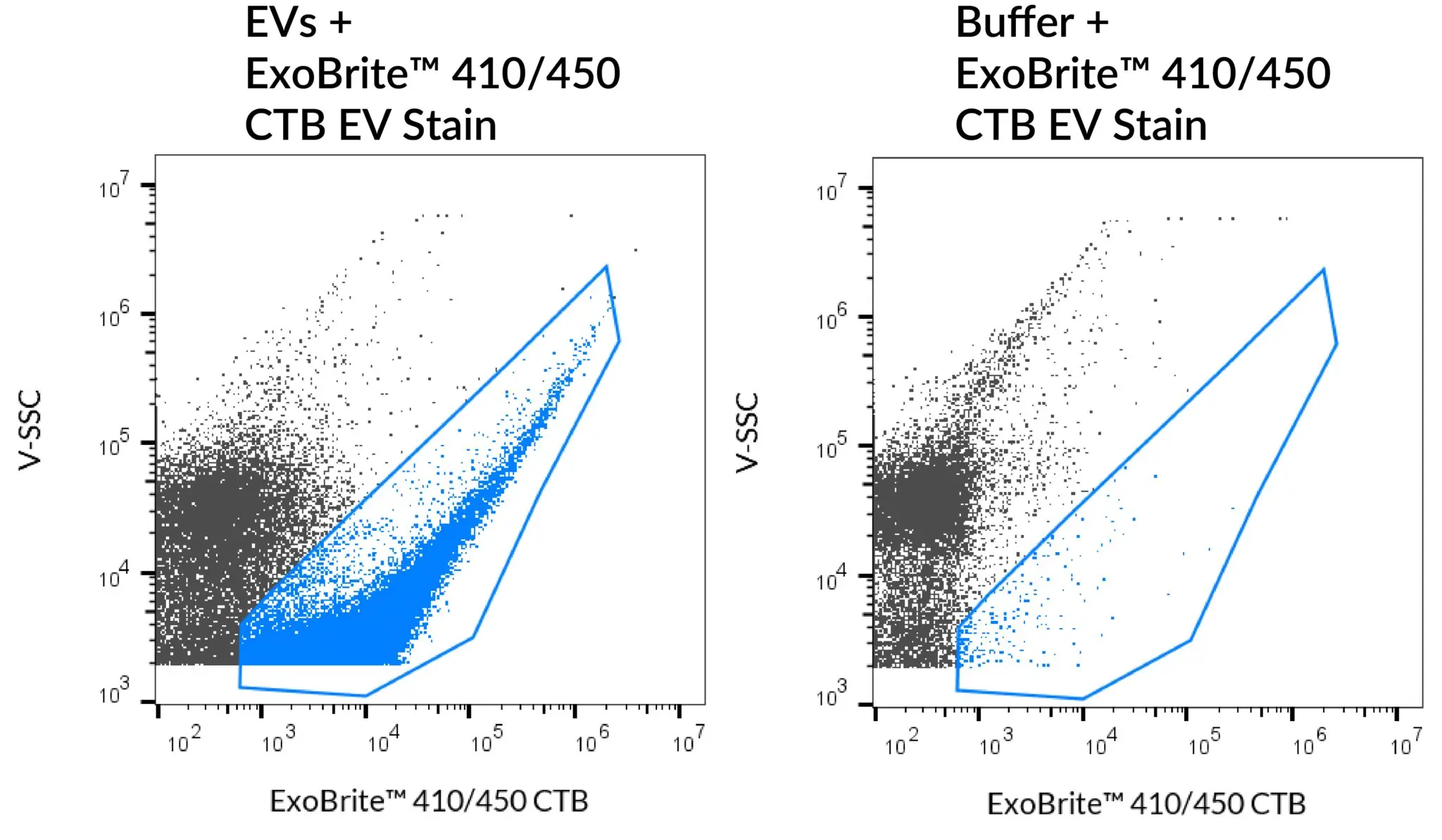

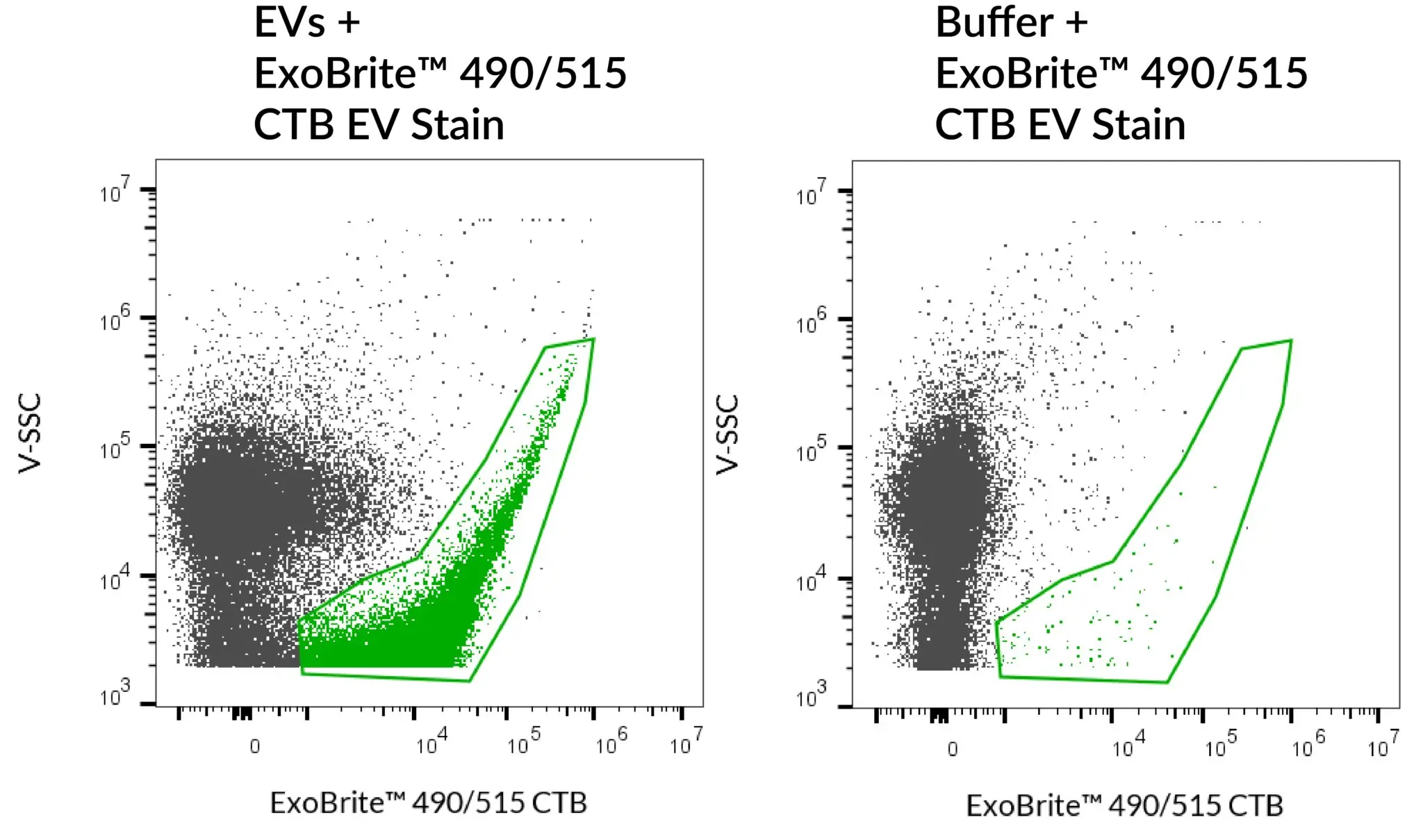

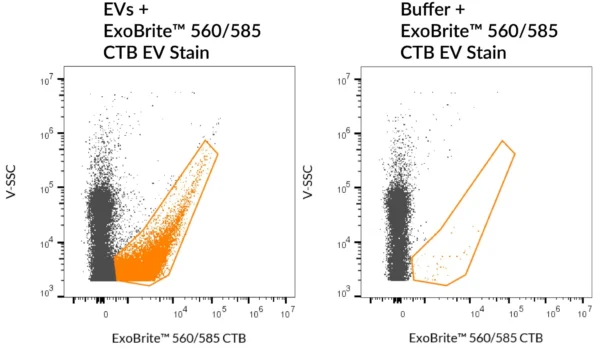

SEC-purified MCF-7-derived EVs were stained with ExoBrite™ CTB EV Stains.
SEC-purified MCF-7-derived EVs were stained with ExoBrite™ CTB EV Stains.

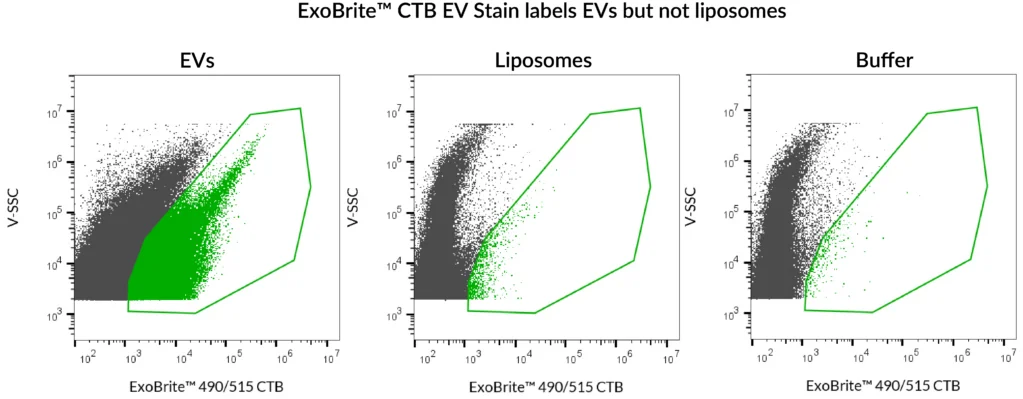

ExoBrite™ 490/515 CTB EV Stain was used to stain either SEC-purified, Jurkat-derived EVs, or artificial liposomes. Robust staining was seen with the EVs, but the liposomes were not stained. The liposomes in this experiment were prepared from Presome® ACD-1, and were verified to be of similar size and concentration to the EVs using the lipophilic dye di-8-ANNEPS (data not shown). Analysis was performed on a CytoFLEX flow cytometer with SSC detected from the 405 nm laser, and ExoBrite™ detected in the FITC channel. Presome® is a registered trademark of NIPPON FINE CHEMICAL CO., LTD.
ExoBrite™ 490/515 CTB EV Stain was used to stain either SEC-purified, Jurkat-derived EVs, or artificial liposomes. Robust staining was seen with the EVs, but the liposomes were not stained. The liposomes in this experiment were prepared from Presome® ACD-1, and were verified to be of similar size and concentration to the EVs using the lipophilic dye di-8-ANNEPS (data not shown). Analysis was performed on a CytoFLEX flow cytometer with SSC detected from the 405 nm laser, and ExoBrite™ detected in the FITC channel. Presome® is a registered trademark of NIPPON FINE CHEMICAL CO., LTD.

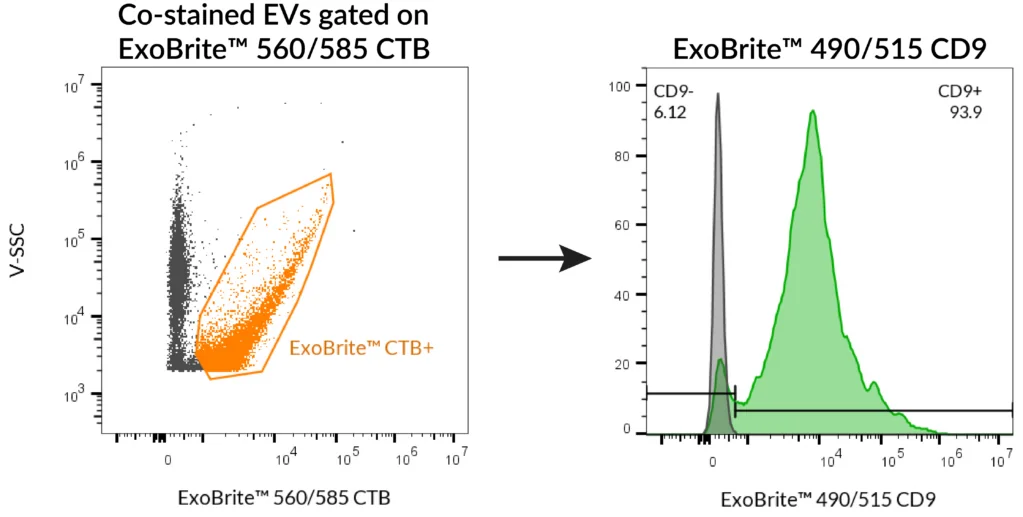

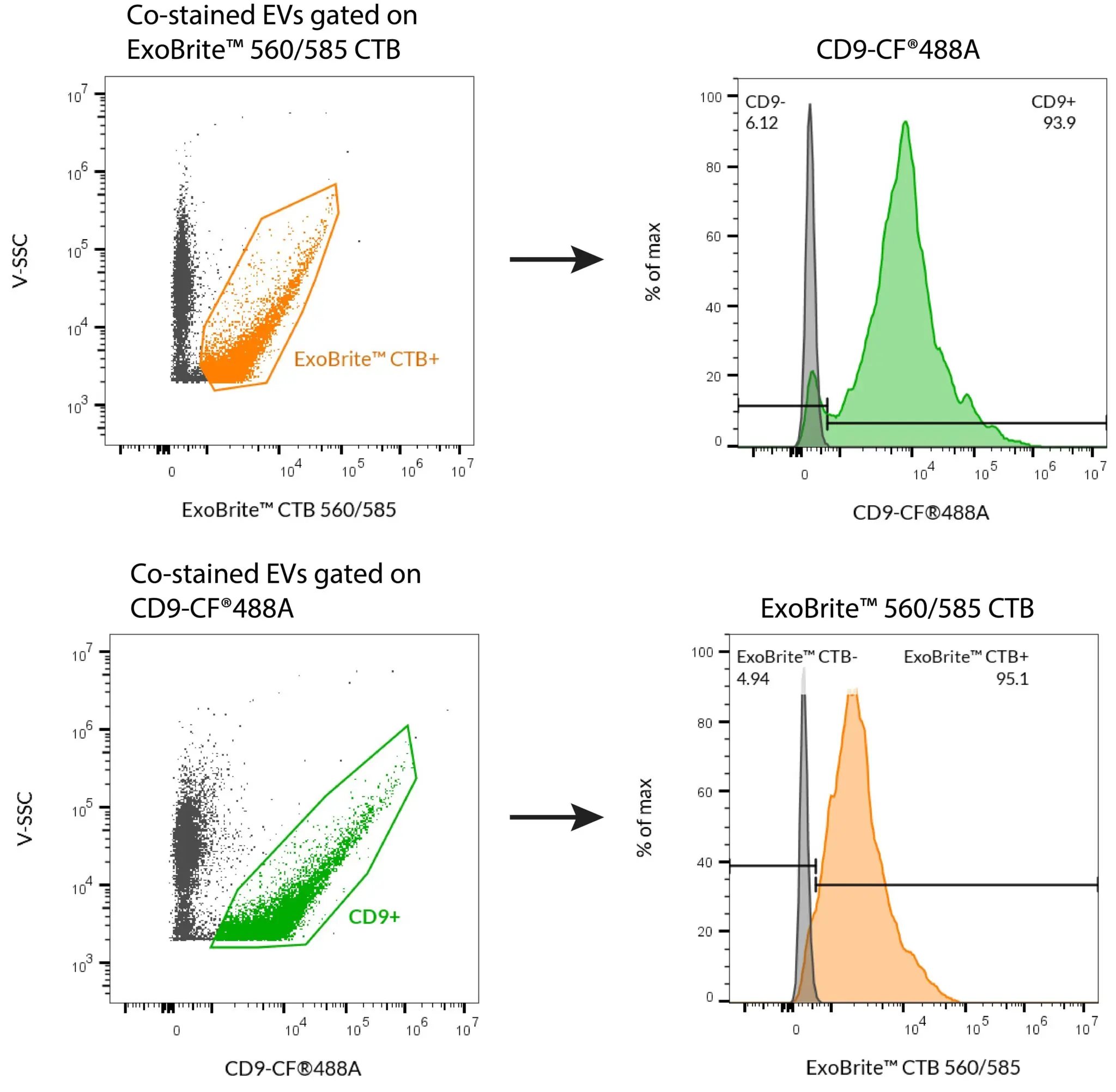

SEC-purified MCF-7-derived EVs were stained first with ExoBrite™ 490/515 CD9 in 100 uL, followed by 10X ExoBrite™ 560/585 CTB EV Stain. EVs were detected on a CytoFLEX LX flow cytometer in the FITC and R-PE channels. When we gated on ExoBrite™ 560/585 CTB-positive particles, ~95% were also positive for CD9.
