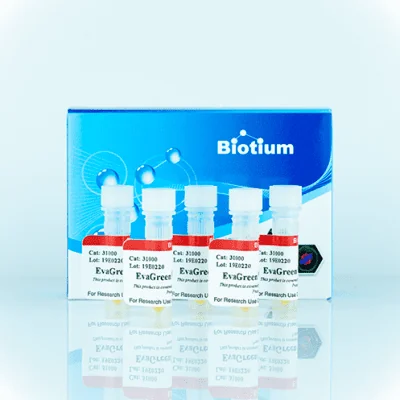

EvaGreen® Dye, 20X in Water (Trial Size)

EvaGreen® Dye, 20X in Water (Trial Size)

A green fluorescent nucleic acid dye with features that are ideal for applications such as qPCR, HRM®, LAMP, and digital PCR.

Product Description

EvaGreen® Dye is green fluorescent nucleic acid dye that is essentially non-fluorescent by itself, but becomes highly fluorescent upon binding to dsDNA.  It is ideal for a wide variety of applications including qPCR and DNA melt curve analysis, HRM®, LAMP, digital PCR, real-time monitoring of thermophilic helicase-dependent amplification (tHDA), capillary gel electrophoresis, and more. The dye is provided at 20X (25 uM) in water.

  • Brighter and less inhibitory than SYBR® Green
  • Environmentally safe, non-mutagenic, and non-cytotoxic
  • Unsurpassed thermal stability, chemical stability, and photostability
  • Excellent compatibility with multiplex PCR
  • Directly visualize amplification products in a gel
  • Compatible with common qPCR instruments and enzyme systems

The Unique Properties of EvaGreen® Dye

EvaGreen® Dye was designed with a novel “release-on-demand” mechanism. In the absence of DNA, the dye assumes a conformation that is inactive. When DNA is available, the dye shifts to an active conformation that binds DNA to emit fluorescence. This property of the dye provides a unique mechanism to continuously supply the active form of the dye from an inactive reserve, as more DNA is produced during the PCR process. As a result, EvaGreen® Dye can be used at a much higher dye concentration than SYBR® Green I (Ref. 1), resulting in a high resolution signal for digital PCR, real-time qPCR, HRM®, and multiplex qPCR by DNA melt curve analysis. This technology also makes it possible to significantly shorten the chain extension time, enabling the use of fast PCR protocols. Learn more about EvaGreen® Dye Technology.

EvaGreen® Dye Applications

When bound to dsDNA, EvaGreen® Dye has excitation and emission spectra very close to those of fluorescein (FAM) or SYBR® Green I, making it readily compatible with instruments equipped with the 488 nm argon laser or any visible light excitation with wavelength in the region. In addition to qPCR and HRM, EvaGreen® Dye is currently the only qPCR dye to be used in droplet digital PCR (ddPCR). EvaGreen® can also be used for isothermal amplification, microfluidic PCR systems, capillary gel electrophoresis, and more. EvaGreen® amplification products can be directly detected on a gel without the need for another DNA gel stain. Download a list of Selected EvaGreen® References for more information.

A Safer, More Stable PCR Dye

EvaGreen® Dye is environmentally friendly, non-mutagenic, and non-cytotoxic because it is impermeable to cell membranes, unlike SYBR® Green I, which enters cell rapidly and is known to be a powerful mutation-enhancer (Ref. 2). Download the EvaGreen® Dye Safety Report for more information. EvaGreen® Dye is more convenient to handle because it has no detectable dye decomposition in PCR buffer at 95-100°C for 48 hours; is highly stable under either alkaline or acidic condition; and withstands repeated freeze-thaw cycles.

Our Forget-Me-Not™ EvaGreen® qPCR Master Mix with ROX as well as our Forget-Me-Not™ EvaGreen® qPCR Master Mix with 2-Color Tracking utilizes EvaGreen® Dye in a convenient ready-to-use qPCR master mix with excellent sensitivity and competitive prices. We also offer Thiazole Green, 1000X in DMSO, which is identical to SYBR® Green I.

EvaGreen and applications are covered under granted and pending US and international patents. SYBR is a registered trademark of Thermo Fisher Scientific. HRM is a registered trademark of Idaho Technologies, Inc./BioFire Defense, LLC and its use may require a license.

References

1. BMC Biotechnol (2007), doi: 10.1186/1472-6750-7-76
2. Mutation Res. (2001), doi: 10.1016/S1383-5718(01)00155-3

EvaGreen® Dye in droplet digital PCR:
3. Lab Chip (2010), doi: 10.1039/c004521g
4. The Royal Society of Chemistry (2014), doi: 10.1039/c3an02334f
5. Analytical Chemistry (2014), doi: 10.1021/ac403843j
6. Analytical Chemistry (2013), doi: 10.1021/ac4030413
7. The Journal of American Society (2011), doi: 10.1021/ja2060116
8. Analytical Chemistry (2010), doi: 10.1021/ac902510u
9. Analytical Chemistry (2013), doi:10.1021/ac403061n
10. Nucleic Acids Research (2013), doi:10.1093/nar/gkt684

Download a list of Selected EvaGreen References.
